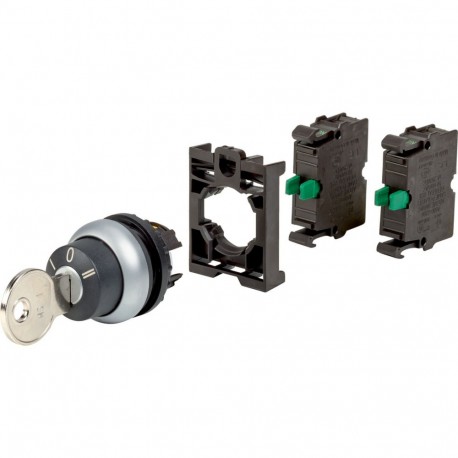

EATON - MOELLER M22-WS3-2K10-BVP M22-WS3-2K10-BVP 110919 Y7-110919 EATON ELECTRIC Key-operated buttons, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WS3-2K10-BVP 110919 Y7-110919 EATON ELECTRIC Key-operated buttons, complete device

M22-WS3-2K10-BVP

110919

Y7-110919

EATON - MOELLER

1 Pcs.

Key-operated buttons, complete device M22-WS3-2K10-BVP Eaton Moeller® series M22 Key-operated actuator, RMQ-Titan, momentary, 3 positions, 2 NO, Blister Pack for hanging Key-operated actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as an M22-WS3-2K10-BVP 110919 Y7-110919 EATON ELECTRIC Key-operated buttons, complete device, this unit functions as a secure control interface for managing machine operational parameters. Panel builders install key-operated actuators across industrial automation setups to prevent unauthorized mode changes and secure critical control circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
110919
Model Code
M22-WS3-2K10-BVP
EAN
4015081104482
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.063 kg
Compliances
CE
Certifications
DNV
GL
LR
