EATON - MOELLER M22-WRLK3-R-2K01LED-BVP M22-WRLK3-R-2K01LED-BVP 132608 Y7-132608 EATON ELECTRIC Selector switches 2 N/C with thumb grip, complete de.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRLK3-R-2K01LED-BVP 132608 Y7-132608 EATON ELECTRIC Selector switches 2 N/C with thumb grip, complete de..

M22-WRLK3-R-2K01LED-BVP

132608

Y7-132608

EATON - MOELLER

1 Pcs.

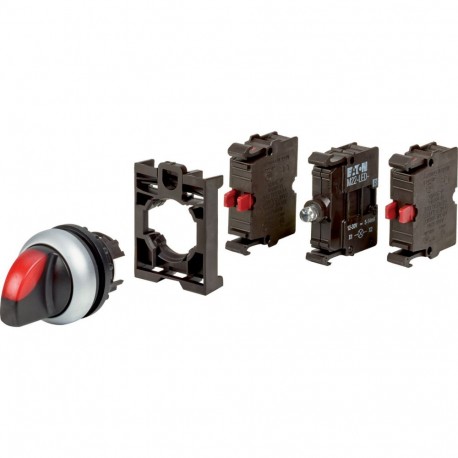

Selector switches 2 N/C with thumb grip, complete device M22-WRLK3-R-2K01LED-BVP Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, maintained, 3 positions, 1 NC, red, Blister pack for hanging Illuminated selector switch actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
132608
Model Code
M22-WRLK3-R-2K01LED-BVP
EAN
4015081295531
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.05 kg
Compliances
CE

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring

General

Degree of protection
NEMA 4X
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Overvoltage category
III
Pollution degree
3
Size
Front diameter: 29.7 mm
Suitable for
Illumination

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Actuator

Actuator color
Black
Actuator function
Switching function latching
Actuator type
Toggle
Number of switch positions
3

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 132608 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Toggle
Suitable for lighting (EF001142) Yes
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Red
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
