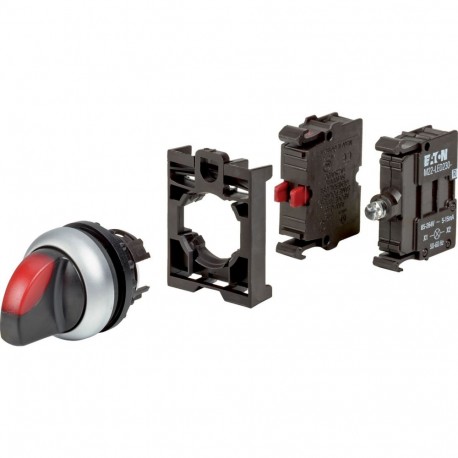

EATON - MOELLER M22-WRLK-R-K01LED230-BVP M22-WRLK-R-K01LED230-BVP 132607 Y7-132607 EATON ELECTRIC Selector switches 1 N/C with thumb grip, complete d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRLK-R-K01LED230-BVP 132607 Y7-132607 EATON ELECTRIC Selector switches 1 N/C with thumb grip, complete d..

M22-WRLK-R-K01LED230-BVP

132607

Y7-132607

EATON - MOELLER

1 Pcs.

Selector switches 1 N/C with thumb grip, complete device M22-WRLK-R-K01LED230-BVP Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, maintained, 2 positions, 1 NC, red, LED 230 VAC, Blister pack for hanging Illuminated selector switch actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller selector switches item M22-WRLK-R-K01LED230-BVP functions as a manual control interface for industrial control panels, enabling operators to toggle between system states or operational modes. Panel-mounted control switches are routinely installed on machinery and electrical enclosure doors to direct routine operational sequences or override automated processes safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Black
  • Colour indicator light cap (EF007165): Red
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
132607
Model Code
M22-WRLK-R-K01LED230-BVP
EAN
4015081295524
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.04 kg
Compliances
CE

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
