View larger
Images are for illustrative purposes only. Please refer to data sheet for details

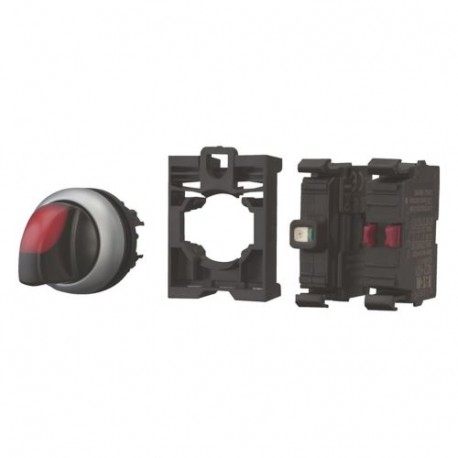

M22-WRLK-R-K01LED-BVP 132606 Y7-132606 EATON ELECTRIC Selector switches 1 N/C with thumb grip, complete devi..
M22-WRLK-R-K01LED-BVP
132606
Y7-132606
EATON - MOELLER
1 Pcs.
Selector switches 1 N/C with thumb grip, complete device
M22-WRLK-R-K01LED-BVP
Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, maintained, 2 positions, 1 NC, red, Blister pack for hanging
Illuminated selector switch actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
132606
Model Code
M22-WRLK-R-K01LED-BVP
EAN
4015081295517
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.04 kg
Compliances
CE
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 2 |
| Type of control element (EF006976) | Toggle |
| Suitable for lighting (EF001142) | Yes |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Red |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
