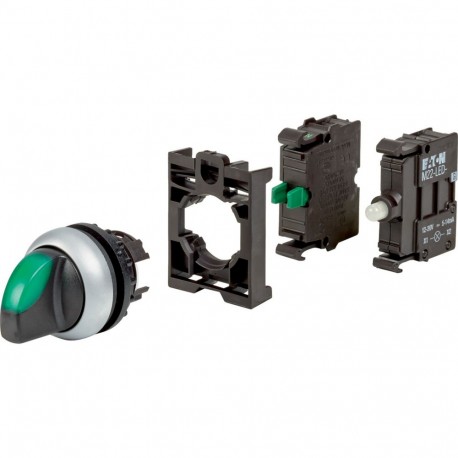

EATON - MOELLER M22-WRLK-G-K10LED-BVP M22-WRLK-G-K10LED-BVP 110924 Y7-110924 EATON ELECTRIC Selector switches 1 N/O with thumb grip, complete devi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRLK-G-K10LED-BVP 110924 Y7-110924 EATON ELECTRIC Selector switches 1 N/O with thumb grip, complete devi..

M22-WRLK-G-K10LED-BVP

110924

Y7-110924

EATON - MOELLER

1 Pcs.

Selector switches 1 N/O with thumb grip, complete device M22-WRLK-G-K10LED-BVP Eaton Moeller® series M22 Illuminated selector switch actuator, RMQ-Titan, maintained, 2 positions, 1 NO, green, Blister pack for hanging Illuminated selector switch actuator, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-WRLK-G-K10LED-BVP selector switch is an illuminated electromechanical control device designed for panel mounting to toggle between operating states in industrial machinery and electrical distribution systems. Operators use these components to manually command system processes and provide visual status feedback. Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): Yes
  • Colour control element (EF007167): Green
  • Colour indicator light cap (EF007165): Green
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated selector switch actuator
Catalog Number
110924
Model Code
M22-WRLK-G-K10LED-BVP
EAN
4015081104536
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.039 kg
Compliances
CE
Certifications
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
