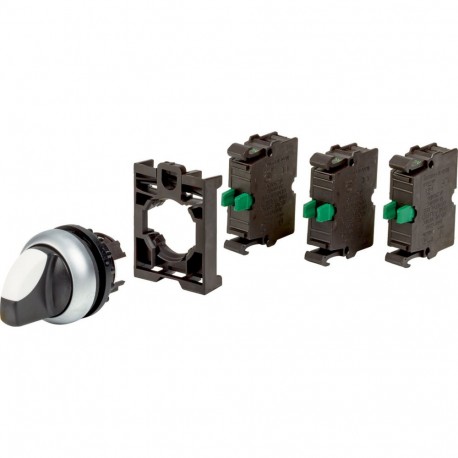

EATON - MOELLER M22-WRK-3K10-BVP M22-WRK-3K10-BVP 110923 Y7-110923 EATON ELECTRIC Selector switches 3 N/O with thumb grip, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRK-3K10-BVP 110923 Y7-110923 EATON ELECTRIC Selector switches 3 N/O with thumb grip, complete device

M22-WRK-3K10-BVP

110923

Y7-110923

EATON - MOELLER

1 Pcs.

Selector switches 3 N/O with thumb grip, complete device M22-WRK-3K10-BVP Eaton Moeller® series M22 Changeover switch, RMQ-Titan, maintained, 2 positions, 3 NO, Blister pack for hanging Changeover switch, Product range: RMQ-Titan, Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Complete control assemblies like the Eaton Moeller selector switches 3 N/O with thumb grip (M22-WRK-3K10-BVP) integrate tactile operators with internal contact blocks, offering ready-to-install multi-position switching solutions for industrial machinery and distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Toggle
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Changeover switch
Catalog Number
110923
Model Code
M22-WRK-3K10-BVP
EAN
4015081104529
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.049 kg
Compliances
CE
Certifications
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
