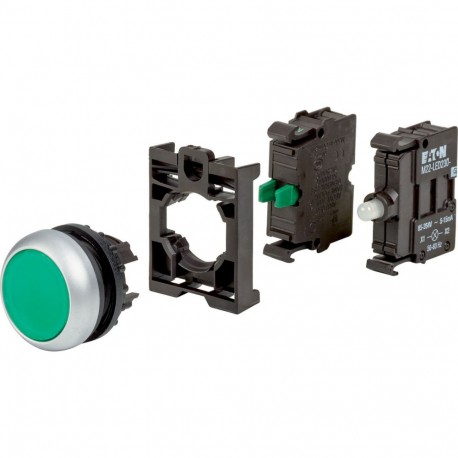

EATON - MOELLER M22-DL-G-K10LED230-BVP M22-DL-G-K10LED230-BVP 132603 Y7-132603 EATON ELECTRIC Illuminated pushbutton actuators, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DL-G-K10LED230-BVP 132603 Y7-132603 EATON ELECTRIC Illuminated pushbutton actuators, complete device

M22-DL-G-K10LED230-BVP

132603

Y7-132603

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuators, complete device M22-DL-G-K10LED230-BVP Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, flush, momentary, 1 NO, green, Blister pack for hanging Illuminated pushbutton actuator, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Complete illuminated pushbutton actuator assemblies integrate the operator button, lighting element, and contact blocks into a single ready-to-mount unit for industrial machinery. This Eaton Moeller M22-DL-G-K10LED230-BVP component delivers reliable green visual indication.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
132603
Model Code
M22-DL-G-K10LED230-BVP
EAN
4015081295388
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.04 kg
Compliances
CE

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
