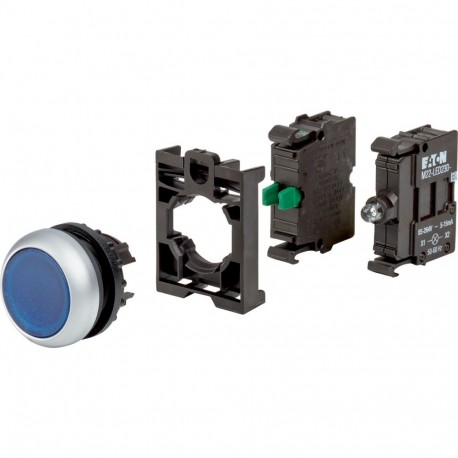

EATON - MOELLER M22-DL-B-K10LED230-BVP M22-DL-B-K10LED230-BVP 132617 Y7-132617 EATON ELECTRIC Illuminated pushbutton actuators, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DL-B-K10LED230-BVP 132617 Y7-132617 EATON ELECTRIC Illuminated pushbutton actuators, complete device

M22-DL-B-K10LED230-BVP

132617

Y7-132617

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuators, complete device M22-DL-B-K10LED230-BVP Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, flush, momentary, 1 NO, blue, LED 230 VAC, Blister pack for hanging Illuminated pushbutton actuator, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-DL-B-K10LED230-BVP is a complete illuminated pushbutton device designed for direct integration into industrial machine control stations. Complete actuator and contact block assemblies simplify panel assembly by providing ready-to-install manual control solutions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Blue
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
132617
Model Code
M22-DL-B-K10LED230-BVP
EAN
4015081295623
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.04 kg
Compliances
CE

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring

General

Degree of protection (front side)
NEMA 4X
IP67
Opening diameter
22 mm
Suitable for
Illumination

Actuator

Actuator color
Blue
Actuator function
Spring-return

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
