View larger
Images are for illustrative purposes only. Please refer to data sheet for details

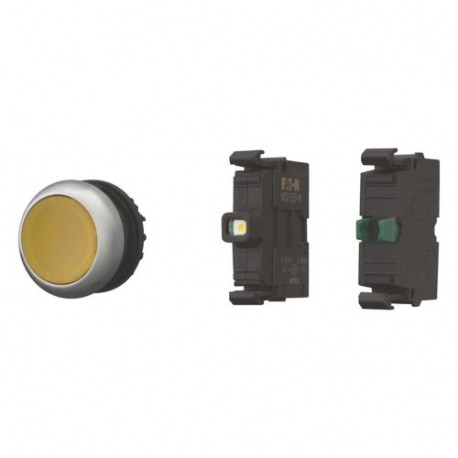

M22-DL-Y-K10LED-BVP 132613 Y7-132613 EATON ELECTRIC Illuminated pushbutton actuators, complete device
M22-DL-Y-K10LED-BVP
132613
Y7-132613
EATON - MOELLER
1 Pcs.
Illuminated pushbutton actuators, complete device
M22-DL-Y-K10LED-BVP
Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, flush, momentary, 1 NO, yellow, Blister pack for hanging
Illuminated pushbutton actuator, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
132613
Model Code
M22-DL-Y-K10LED-BVP
EAN
4015081295586
Product Length/Depth
30 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.04 kg
Compliances
CE
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Fitted with:
Front ring
General
Degree of protection (front side)
IP67
NEMA 4X
NEMA 4X
Opening diameter
22 mm
Suitable for
Illumination
Actuator
Actuator color
Yellow
Actuator function
Spring-return
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Yellow |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
