View larger
Images are for illustrative purposes only. Please refer to data sheet for details

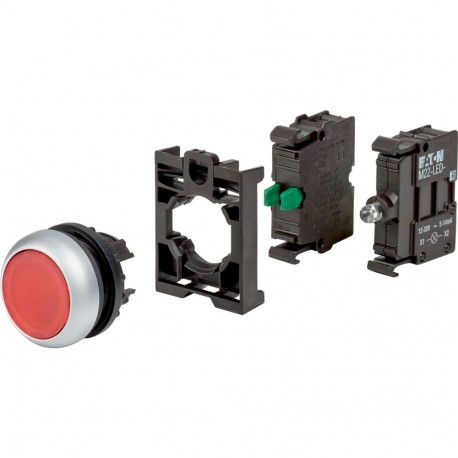

M22-DL-R-K10LED-BVP 110932 Y7-110932 EATON ELECTRIC Illuminated pushbutton actuators, complete device
M22-DL-R-K10LED-BVP
110932
Y7-110932
EATON - MOELLER
1 Pcs.
Illuminated pushbutton actuators, complete device
M22-DL-R-K10LED-BVP
Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, flush, momentary, red, Blister pack for hanging
Illuminated pushbutton actuator, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
110932
Model Code
M22-DL-R-K10LED-BVP
EAN
4015081104611
Product Length/Depth
50 mm
Product Height
80 mm
Product Width
50 mm
Product Weight
0.035 kg
Compliances
CE
Certifications
DNV
GL
LR
GL
LR
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | true |
| With protective cover (EF005500) | false |
| Labelled (EF001537) | false |
| Switching function latching (EF007447) | false |
| Spring-return (EF001407) | true |
| With front ring (EF006014) | true |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
