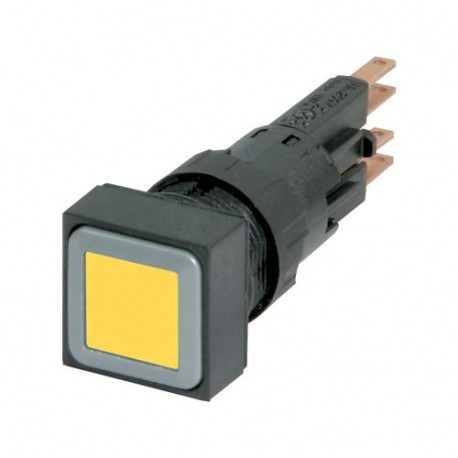

Q18LT-GE 088808 Y7-88808 EATON ELECTRIC Illuminated pushbutton actuator, yellow, momentary
Q18LT-GE
088808
Y7-88808
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number Q18LT-GE serves as an illuminated pushbutton actuator for compact control stations and HMI boards. Such devices allow machine operators to execute momentary control commands and monitor operational states through visual cues.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA File No.: 46552
UL 508
UL File No.: E29184
CSA
IEC/EN 60947-5
CE
CSA Class No.: 3211-03
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
