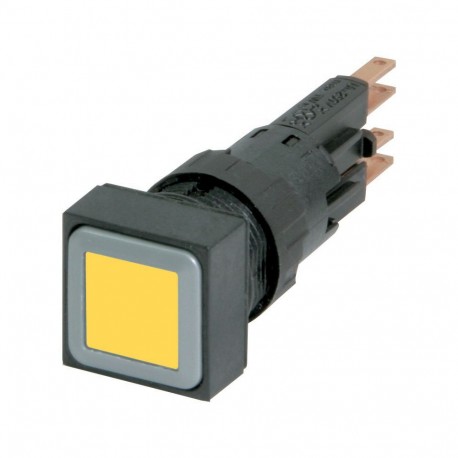

Q25LTR-GE/WB 086346 Y7-86346 EATON ELECTRIC Illuminated pushbutton actuator, yellow, maintained, +filament l..
Q25LTR-GE/WB
086346
Y7-86346
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a front-panel interface, the Eaton Moeller Q25LTR-GE/WB Illuminated pushbutton actuator allows personnel to manually trigger machine operations or issue system commands. Square indicator pushbuttons are typically integrated into control panels, distribution boards, and automation consoles where visual status signaling and tactile switching are required.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
CE
IEC/EN 60947
CSA Class No.: 3211-03
CSA File No.: 46552
UL 508
UL File No.: E29184
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
