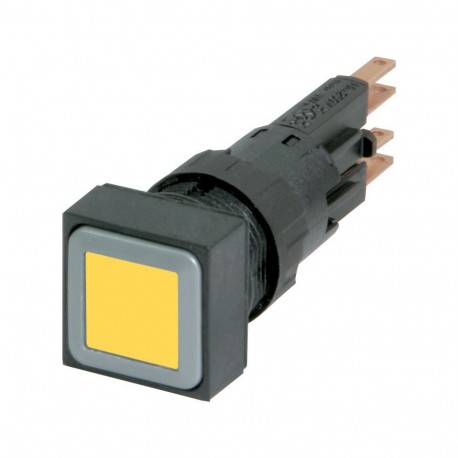

Q18LTR-GE 087764 Y7-87764 EATON ELECTRIC Illuminated pushbutton actuator, yellow, maintained
Q18LTR-GE
087764
Y7-87764
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Electric illuminated pushbutton actuator, yellow, maintained (Q18LTR-GE) offers a square-profile operator interface for industrial control systems, enabling operators to manually toggle and maintain circuit conditions. The illuminated design assists personnel in identifying active or standby equipment states within dense control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA Class No.: 3211-03
CE
IEC/EN 60947
IEC/EN 60947-5
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL File No.: E29184
UL 508
CSA File No.: 46552
CSA
Features & Functions
General
IP65
IP65
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Maintained
