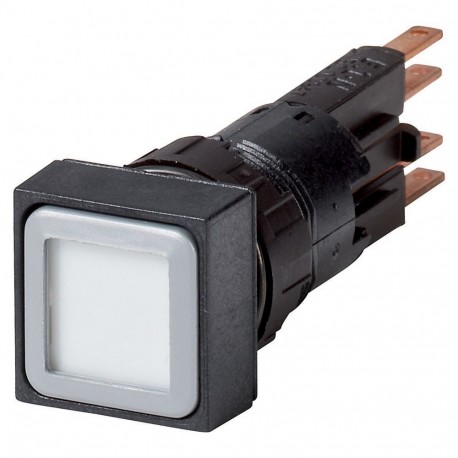

Q18LTR-X 051735 Y7-51735 EATON ELECTRIC Illuminated pushbutton actuator, without button plate, maintained
Q18LTR-X
051735
Y7-51735
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Configured as an illuminated pushbutton actuator without button plate, the Eaton Moeller Q18LTR-X serves as a modular component for custom machine control interfaces. These actuators are installed in control enclosures to enable operator signaling and machinery management across automated processes.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Without button plate
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL File No.: E29184
IEC/EN 60947-5
UL
IEC/EN 60947
UL 508
CSA Class No.: 3211-03
CSA
CSA File No.: 46552
CSA-C22.2 No. 14-05
CE
Product specifications
Maintained
Damp heat, constant, to IEC 60068-2-78
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
2.8 x 0.8 mm to DIN 46244, Blade terminal
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
IP65
NEMA 1
