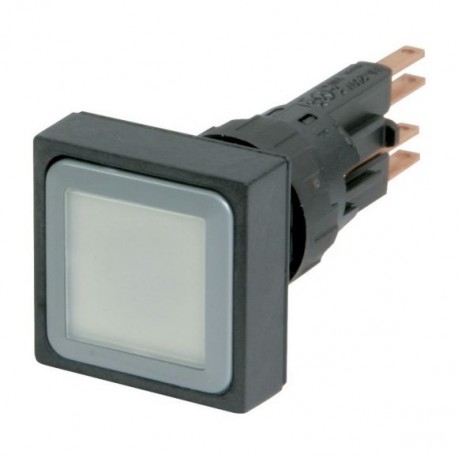

Q25LT-WS/WB 090226 Y7-90226 EATON ELECTRIC Illuminated pushbutton actuator, white, momentary, +filament lamp..
Q25LT-WS/WB
090226
Y7-90226
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated pushbutton actuator integrates a small internal lamp to provide clear visual indication of system status directly on the operator panel. These illuminated control elements assist operators in monitoring process conditions in dimly lit environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: Q25LT-WS/WB
- Catalogue code: 090226
More info
▲General specifications
IEC/EN 60947-5
CSA
IEC/EN 60947
CSA-C22.2 No. 14-05
CE
UL 508
UL Category Control No.: NKCR
CSA File No.: 46552
UL File No.: E29184
UL
Features & Functions
General
NEMA 1
NEMA 1
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
