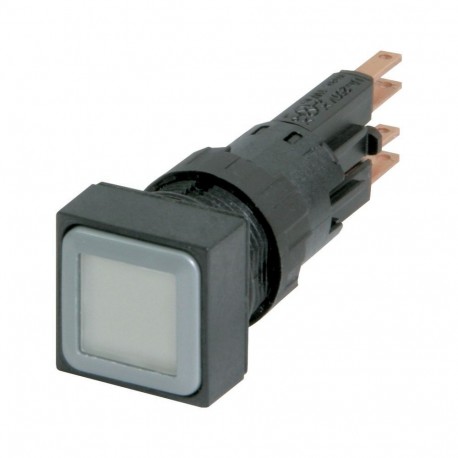

Q18LT-WS 089202 Y7-89202 EATON ELECTRIC Illuminated pushbutton actuator, white, momentary
Q18LT-WS
089202
Y7-89202
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Q18LT-WS 089202 Y7-89202 EATON ELECTRIC Illuminated pushbutton actuator, white, momentary provides visual feedback and momentary signal transmission for machine control systems. Panel builders integrate these components to enable operator inputs that require active holding or brief contact closure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
IEC/EN 60947
CSA File No.: 46552
UL
CSA Class No.: 3211-03
UL 508
UL File No.: E29184
IEC/EN 60947-5
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
