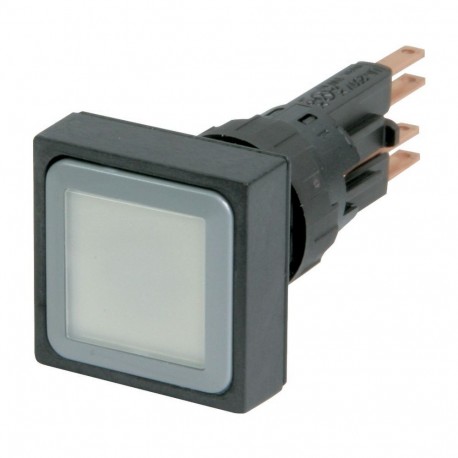

Q25LT-WS 086262 Y7-86262 EATON ELECTRIC Illuminated pushbutton actuator, white, momentary
Q25LT-WS
086262
Y7-86262
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25LT-WS is a square illuminated pushbutton actuator with a white flat momentary lens designed for compact 16 mm panel cutouts. Compact indicator pushbuttons are typically applied where panel space is constrained but visual feedback remains essential. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
CSA File No.: 46552
CSA Class No.: 3211-03
CSA
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947
UL File No.: E29184
Features & Functions
General
IP65
IP65
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
