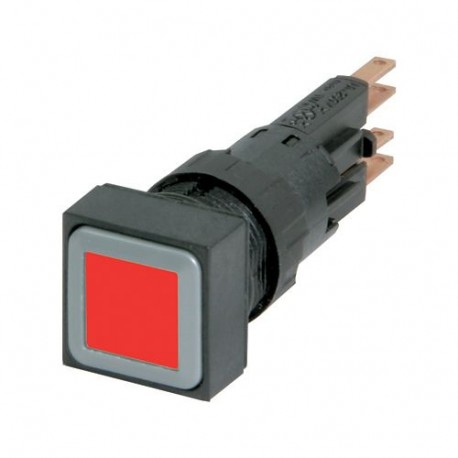

Q18LT-RT 089776 Y7-89776 EATON ELECTRIC Illuminated pushbutton actuator, red, momentary
Q18LT-RT
089776
Y7-89776
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Q18LT-RT 089776 Y7-89776 EATON ELECTRIC Illuminated pushbutton actuator, red, momentary is an Eaton Moeller control device engineered for visual status indication and operator command input on control desks. Industrial control circuits rely on these actuators to safely signal operational states and manage machinery workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL 508
IEC/EN 60947
UL File No.: E29184
IEC/EN 60947-5
UL
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA File No.: 46552
CE
UL Category Control No.: NKCR
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
