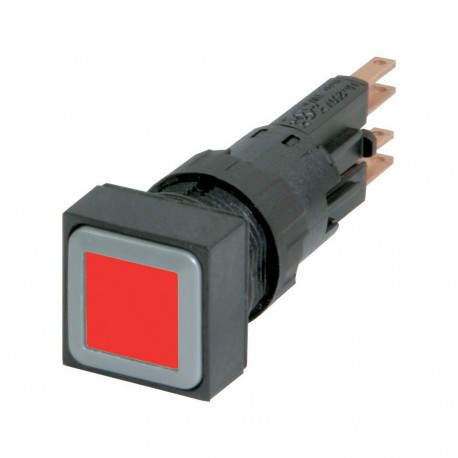

Q18LTR-RT 087918 Y7-87918 EATON ELECTRIC Illuminated pushbutton actuator, red, maintained
Q18LTR-RT
087918
Y7-87918
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated pushbutton actuator is integrated into industrial automation panels to give immediate visual cues while enabling manual switching actions. This Eaton Moeller part number Q18LTR-RT utilizes a square red lens configured for maintained operation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL
UL Category Control No.: NKCR
CSA File No.: 46552
IEC/EN 60947
IEC/EN 60947-5
UL File No.: E29184
CE
UL 508
CSA
CSA Class No.: 3211-03
Features & Functions
General
IP65
NEMA 1
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Switching function latching
