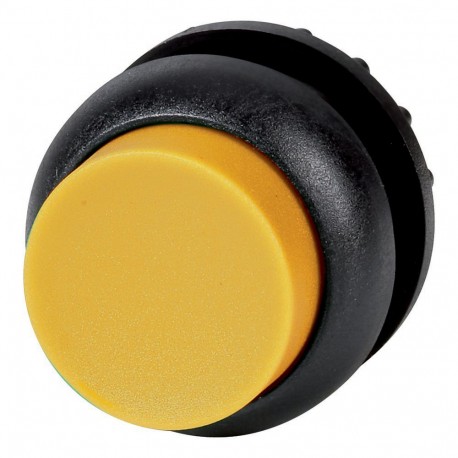

M22S-DRLH-Y 216801 Y7-216801 EATON ELECTRIC Illuminated pushbutton actuator, raised, yellow, maintained

M22S-DRLH-Y

216801

Y7-216801

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, yellow, maintained M22S-DRLH-Y Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, maintained, yellow, Blank, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: yellow, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton actuator provides reliable operator control and status lighting for electrical switchboards and automation panels. The Eaton Moeller part number M22S-DRLH-Y incorporates a raised yellow lens configured for maintained contact operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216801
Model Code
M22S-DRLH-Y
EAN
4015082168018
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
UL
UL 508
UL Category Control No.: NKCR
IEC/EN 60947
CE
CSA File No.: 012528
IEC/EN 60947-5
UL File No.: E29184
CSA-C22.2 No. 94-91
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
