EATON - MOELLER M22-DRLH-Y M22-DRLH-Y 216799 Y7-216799 EATON ELECTRIC Illuminated pushbutton actuator, raised, yellow, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRLH-Y 216799 Y7-216799 EATON ELECTRIC Illuminated pushbutton actuator, raised, yellow, maintained

M22-DRLH-Y

216799

Y7-216799

EATON - MOELLER

5 Pcs.

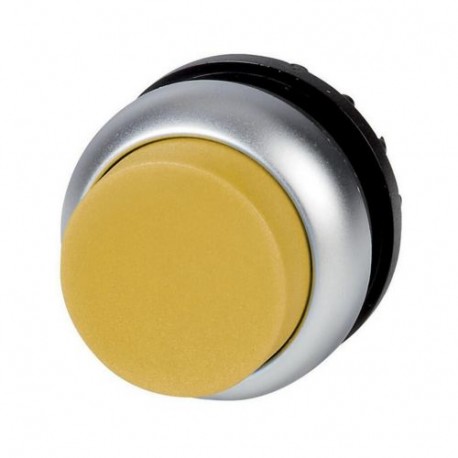

Illuminated pushbutton actuator, raised, yellow, maintained M22-DRLH-Y Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, maintained, yellow, Blank, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: yellow, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton actuator combines manual operator command functions with integral status lighting for clear visual feedback on control panels. The Eaton Moeller M22-DRLH-Y model provides a raised yellow profile built for standard mounting configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216799
Model Code
M22-DRLH-Y
EAN
4015082167998
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
UL 508
IEC 60947-5
CSA Std. C22.2 No. 14-05
EN 60947-5
VDE
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL File No.: E29184
VDE 0660
CE
CSA Class No.: 3211-03
IEC/EN 60947
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
