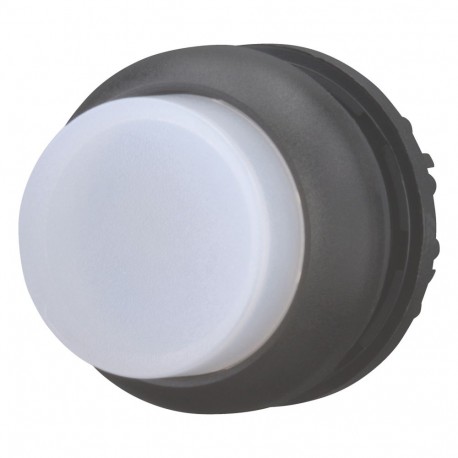

EATON - MOELLER M22S-DLH-W M22S-DLH-W 216966 Y7-216966 EATON ELECTRIC Illuminated pushbutton actuator, raised, white, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DLH-W 216966 Y7-216966 EATON ELECTRIC Illuminated pushbutton actuator, raised, white, momentary

M22S-DLH-W

216966

Y7-216966

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, white, momentary M22S-DLH-W Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, momentary, White, Blank, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, momentary, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22S-DLH-W 216966 Y7-216966 EATON ELECTRIC Illuminated pushbutton actuator, raised, white, momentary provides an ergonomic signaling and control point for electrical distribution panels and automated assembly lines. These illuminated operators offer clear visual feedback while allowing personnel to input momentary control commands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216966
Model Code
M22S-DLH-W
EAN
4015082169664
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
CSA Std. C22.2 No. 94-91
EN 60947-5
VDE
CE
IEC/EN 60947
IEC/EN 60947-5
CSA Class No.: 3211-03
UL File No.: E29184
CSA File No.: 012528
UL
UL Category Control No.: NKCR
VDE 0660
CSA
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
