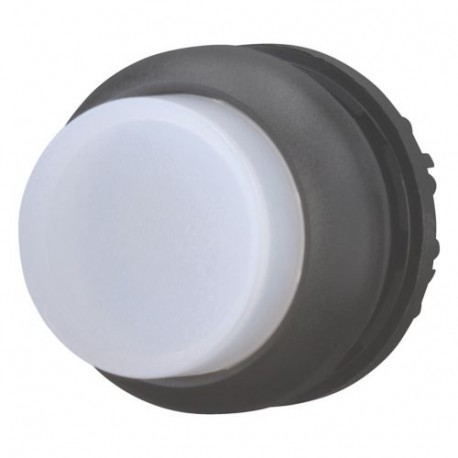

EATON - MOELLER M22S-DRLH-W M22S-DRLH-W 216791 Y7-216791 EATON ELECTRIC Illuminated pushbutton actuator, raised, white, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DRLH-W 216791 Y7-216791 EATON ELECTRIC Illuminated pushbutton actuator, raised, white, maintained

M22S-DRLH-W

216791

Y7-216791

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, white, maintained M22S-DRLH-W Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, maintained, White, Blank, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22S-DRLH-W is an illuminated pushbutton actuator designed for operator control stations and machinery switchboards. Pushbutton actuators serve as physical interface elements in industrial installations, allowing operators to manually send electrical control signals or toggle system states on control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216791
Model Code
M22S-DRLH-W
EAN
4015082167912
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
IEC/EN 60947
UL File No.: E29184
CSA-C22.2 No. 14-05
CE
UL Category Control No.: NKCR
VDE 0660
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL 508
CSA
CSA File No.: 012528
IEC/EN 60947-5
DNV
GL
LR
