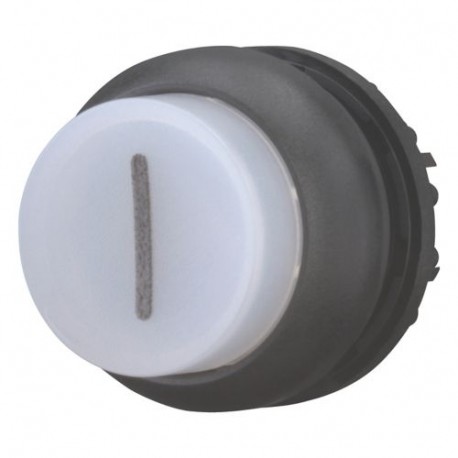

M22S-DLH-W-X1 216982 Y7-216982 EATON ELECTRIC Illuminated pushbutton actuator, raised, white I, momentary
M22S-DLH-W-X1
216982
Y7-216982
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller illuminated pushbutton actuator features an elevated design and clear labeling for intuitive operator command input on industrial control desks. The built-in illumination and text marking help prevent user errors during critical machine processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA
UL 508
IEC/EN 60947
CSA File No.: 012528
UL Category Control No.: NKCR
IEC/EN 60947-5
CE
VDE 0660
UL File No.: E29184
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
DNV
GL
LR
Features & Functions
Classical
General
IP67
NEMA 3R
IP66
NEMA 4X
NEMA 13
NEMA 12
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
