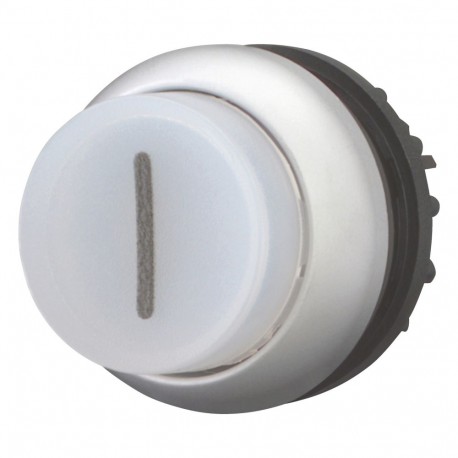

M22-DLH-W-X1 216981 Y7-216981 EATON ELECTRIC Illuminated pushbutton actuator, raised, white I, momentary
M22-DLH-W-X1
216981
Y7-216981
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-DLH-W-X1 illuminated pushbutton actuator provides a raised, human-machine interface point for operator panels and control desks. Operators use this type of momentary control component to manually issue direct electrical commands, trigger logic sequences, or start and stop industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14-05
VDE 0660
CSA Class No.: 3211-03
IEC/EN 60947
UL
UL 508
CE
DNV
GL
LR
Features & Functions
Classical
General
IP66
IP69K
NEMA 4X
NEMA 13
IP67
NEMA 12
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Spring-return
