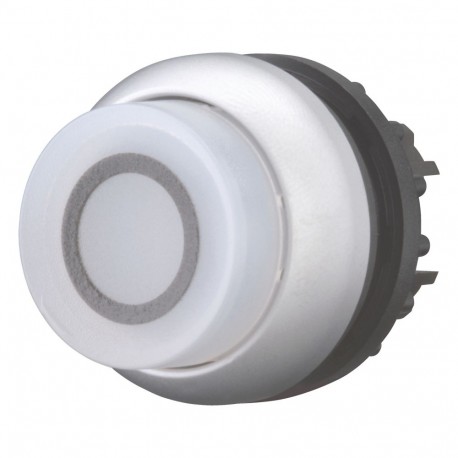

M22-DLH-W-X0 216979 Y7-216979 EATON ELECTRIC Illuminated pushbutton actuator, raised, white 0, momentary
M22-DLH-W-X0
216979
Y7-216979
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DLH-W-X0 is a raised illuminated pushbutton actuator designed for momentary control tasks on machine operator interfaces. Pushbuttons allow personnel to interact directly with automation setups to initiate specific commands or test indicators. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
UL 508
UL File No.: E29184
CE
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
VDE 0660
CSA File No.: 012528
CSA
DNV
GL
LR
Product specifications
Spring-return
Damp heat, constant, to IEC 60068-2-78
With SWD-RMQ connections
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Classical
IP67
NEMA 4X
NEMA 3R
NEMA 13
IP66
IP69K
IP67/IP69K
