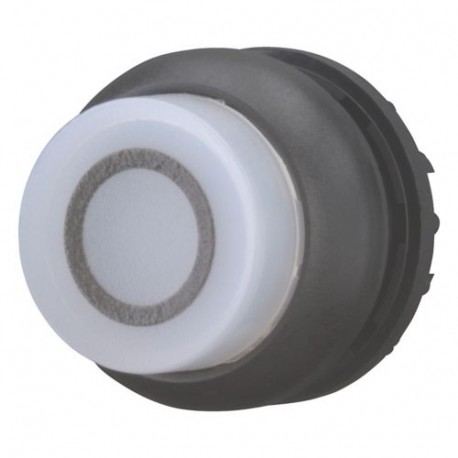

M22S-DRLH-W-X0 216810 Y7-216810 EATON ELECTRIC Illuminated pushbutton actuator, raised, white 0, maintained
M22S-DRLH-W-X0
216810
Y7-216810
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-DRLH-W-X0 is a raised illuminated pushbutton actuator engineered for maintained switching tasks in control stations. Such devices enable operators to toggle machine states or maintain circuit conditions until manually released. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL 508
UL
UL File No.: E29184
CE
CSA
CSA-C22.2 No. 94-91
CSA File No.: 012528
VDE 0660
IEC/EN 60947-5
CSA Class No.: 3211-03
UL Category Control No.: NKCR
IEC/EN 60947
DNV
GL
LR
