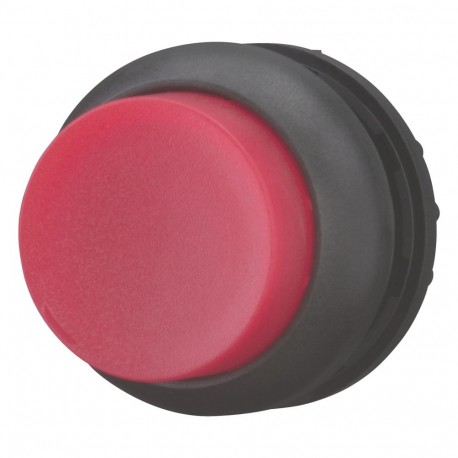

M22S-DRLH-R 216792 Y7-216792 EATON ELECTRIC Illuminated pushbutton actuator, raised, red, maintained
M22S-DRLH-R
216792
Y7-216792
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for demanding industrial environments, the Eaton Moeller M22S-DRLH-R is an illuminated raised pushbutton actuator with a maintained switching function. These operator devices allow personnel to securely latch control states on machinery and electrical distribution panels where high visibility and positive tactile feedback are required.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA-C22.2 No. 94-91
UL 508
VDE 0660
CSA Class No.: 3211-03
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947
UL File No.: E29184
UL
CE
DNV
GL
LR
