EATON - MOELLER M22-DLH-R-X0 M22-DLH-R-X0 216975 Y7-216975 EATON ELECTRIC Illuminated pushbutton actuator, raised, red 0, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DLH-R-X0 216975 Y7-216975 EATON ELECTRIC Illuminated pushbutton actuator, raised, red 0, momentary

M22-DLH-R-X0

216975

Y7-216975

EATON - MOELLER

5 Pcs.

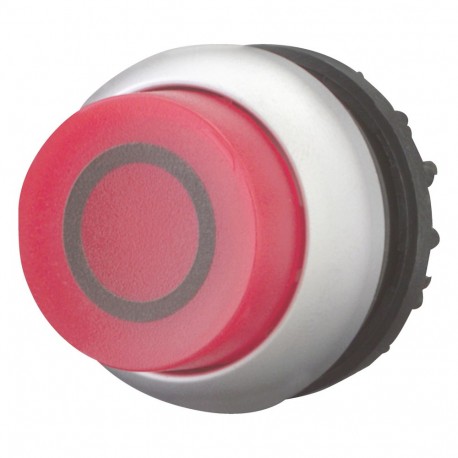

Illuminated pushbutton actuator, raised, red 0, momentary M22-DLH-R-X0 Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, momentary, red, inscribed, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, momentary, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-DLH-R-X0 illuminated pushbutton actuator combines a raised red lens with standard marking to provide clear, momentary stop or off commands on machine control panels. Integrated illumination ensures high visibility in complex electrical installations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216975
Model Code
M22-DLH-R-X0
EAN
4015082169756
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.012 kg
Certifications
CE
UL
UL 508
UL Category Control No.: NKCR
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 94-91
VDE 0660
CSA-C22.2 No. 14-05
CSA
CSA Class No.: 3211-03
IEC/EN 60947-5
UL File No.: E29184
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
