EATON - MOELLER M22S-DRLH-R-X0 M22S-DRLH-R-X0 216808 Y7-216808 EATON ELECTRIC Illuminated pushbutton actuator, raised, red 0, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

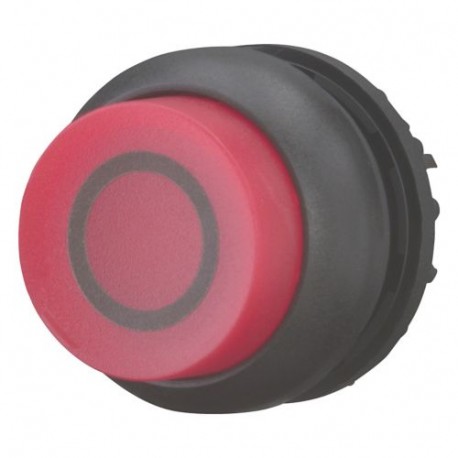

M22S-DRLH-R-X0 216808 Y7-216808 EATON ELECTRIC Illuminated pushbutton actuator, raised, red 0, maintained

M22S-DRLH-R-X0

216808

Y7-216808

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, red 0, maintained M22S-DRLH-R-X0 Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, maintained, red, inscribed, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DRLH-R-X0 illuminated pushbutton actuator combines visual status indication with a maintained mechanical latching function for industrial control panels. It is widely used by machine builders to provide clear, high-visibility stop or reset controls on automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216808
Model Code
M22S-DRLH-R-X0
EAN
4015082168087
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA-C22.2 No. 94-91
CSA
UL 508
VDE 0660
CSA-C22.2 No. 14-05
UL
UL File No.: E29184
UL Category Control No.: NKCR
CE
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-5
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
