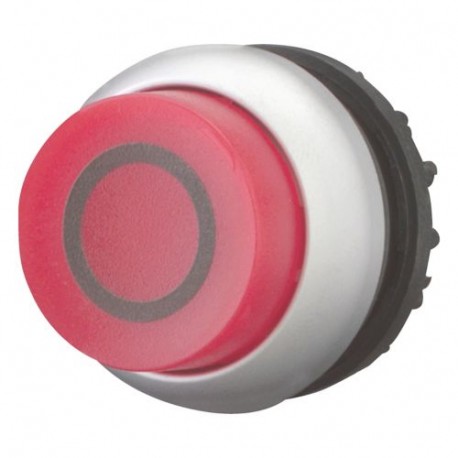

M22-DRLH-R-X0 216804 Y7-216804 EATON ELECTRIC Illuminated pushbutton actuator, raised, red 0, maintained

M22-DRLH-R-X0

216804

Y7-216804

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, red 0, maintained M22-DRLH-R-X0 Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, maintained, red, inscribed, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated maintained pushbutton actuator holds its mechanical and electrical contact position until intentionally reset, providing reliable state control for industrial equipment and automated processes. The raised profile accommodates internal lighting modules for visual clarity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216804
Model Code
M22-DRLH-R-X0
EAN
4015082168049
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
CSA Class No.: 3211-03
CE
UL File No.: E29184
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA File No.: 012528
UL
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
IEC/EN 60947
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
