EATON - MOELLER M22S-DLH-G M22S-DLH-G 216970 Y7-216970 EATON ELECTRIC Illuminated pushbutton actuator, raised, green, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

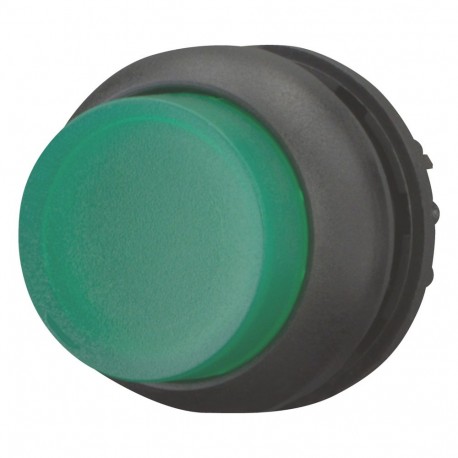

M22S-DLH-G 216970 Y7-216970 EATON ELECTRIC Illuminated pushbutton actuator, raised, green, momentary

M22S-DLH-G

216970

Y7-216970

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, raised, green, momentary M22S-DLH-G Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, momentary, green, Blank, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, momentary, button plate: green, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DLH-G is an illuminated raised pushbutton actuator featuring a green momentary lens housed in a standard 22.5 mm mounting configuration. Raised operator buttons are frequently chosen to enhance finger clearance and tactile visibility on busy control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216970
Model Code
M22S-DLH-G
EAN
4015082169701
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.012 kg
Certifications
IEC/EN 60947-5
VDE 0660
CE
CSA
UL 508
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947
UL File No.: E29184
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
