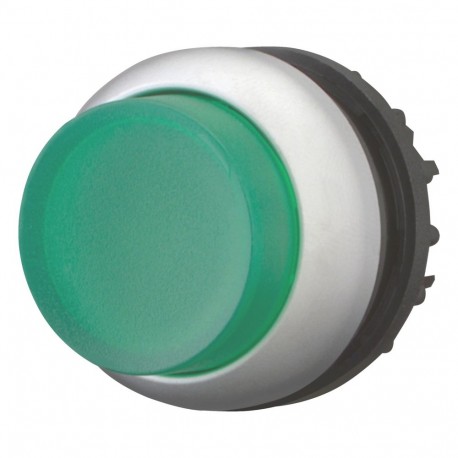

EATON - MOELLER M22-DLH-G M22-DLH-G 216969 Y7-216969 EATON ELECTRIC Illuminated pushbutton actuator, raised, green, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DLH-G 216969 Y7-216969 EATON ELECTRIC Illuminated pushbutton actuator, raised, green, momentary

M22-DLH-G

216969

Y7-216969

EATON - MOELLER

5 Pcs.

Illuminated pushbutton actuator, raised, green, momentary M22-DLH-G Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Extended, momentary, green, Blank, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, momentary, button plate: green, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Eaton Moeller, the M22-DLH-G illuminated pushbutton actuator combines visual status feedback with manual switching capability for automated industrial processes. Illuminated pushbuttons provide operators with immediate optical cues regarding machine cycles and fault conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216969
Model Code
M22-DLH-G
EAN
4015082169695
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL 508
VDE
CE
CSA Class No.: 3211-03
CSA
CSA File No.: 012528
UL
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC/EN 60947
IEC/EN 60947-5
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
