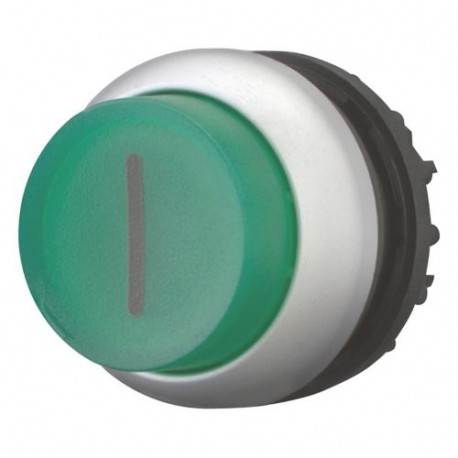

M22-DLH-G-X1 216977 Y7-216977 EATON ELECTRIC Illuminated pushbutton actuator, raised, green I, momentary
M22-DLH-G-X1
216977
Y7-216977
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-DLH-G-X1 illuminated pushbutton actuator features a raised, labeled design intended for mounting in standard industrial control cutouts to execute momentary machine commands. Built-in illumination combined with clear text identification assists operators during active sequence control.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC/EN 60947-5
IEC/EN 60947
UL Category Control No.: NKCR
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
UL 508
CSA-C22.2 No. 94-91
CSA
CSA-C22.2 No. 14-05
UL
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
IP69K
NEMA 12
NEMA 4X
NEMA 13
NEMA 3R
IP66
IP67/IP69K
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Momentary
