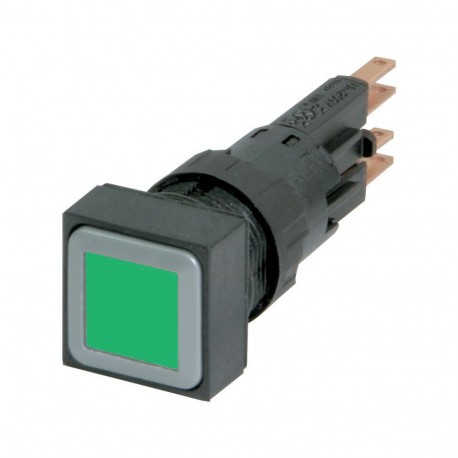

Q25LT-GN/WB 089190 Y7-89190 EATON ELECTRIC Illuminated pushbutton actuator, green, momentary, +filament lamp..
Q25LT-GN/WB
089190
Y7-89190
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Illuminated pushbutton actuator Q25LT-GN/WB from Eaton Moeller is utilized in control desks to provide combined switching and visual indication. Momentary green pushbuttons are commonly deployed to initiate safe operational sequences in machinery control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947
UL
CE
CSA Class No.: 3211-03
CSA File No.: 46552
UL File No.: E29184
IEC/EN 60947-5
Features & Functions
General
IP65
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Momentary
