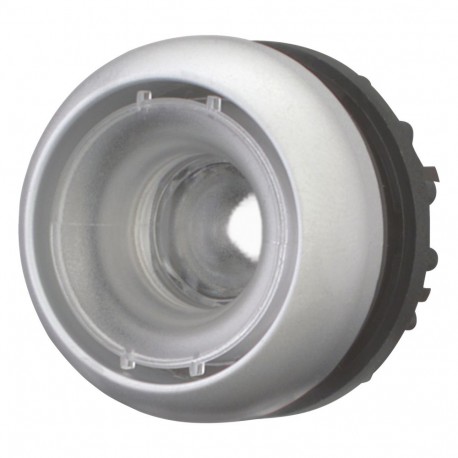

EATON - MOELLER M22-DL-X M22-DL-X 216933 Y7-216933 EATON ELECTRIC Illuminated pushbutton actuator, flush, without button plate, momen.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DL-X 216933 Y7-216933 EATON ELECTRIC Illuminated pushbutton actuator, flush, without button plate, momen..

M22-DL-X

216933

Y7-216933

EATON - MOELLER

10 Pcs.

Illuminated pushbutton actuator, flush, without button plate, momentary M22-DL-X Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, momentary, Without button plate, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, momentary, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-DL-X Eaton Moeller illuminated pushbutton actuator is an adaptable component designed for electrical switchgear and machine control desks where customized operator labeling is required. These modular actuators accept specific lens caps to match exact plant identification requirements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216933
Model Code
M22-DL-X
EAN
4015082169336
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
UL 508
CSA Std. C22.2 No. 94-91
VDE
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
CSA
CE
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
