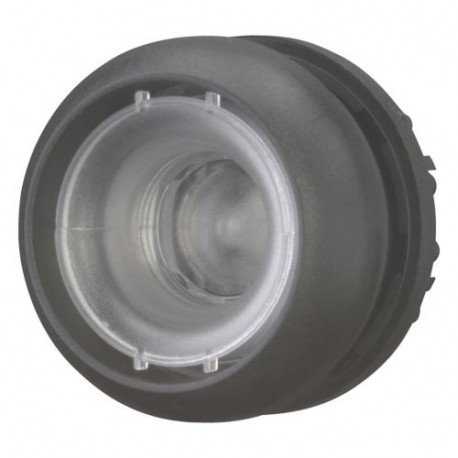

M22S-DRL-X 216956 Y7-216956 EATON ELECTRIC Illuminated pushbutton actuator, flush, without button plate, mai..
M22S-DRL-X
216956
Y7-216956
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-DRL-X Illuminated pushbutton actuator, flush, without button plate, mai.. is an industrial pushbutton actuator utilized in control panels and automation systems to facilitate operator inputs. Such actuators serve as the physical interface for controlling machine states, signaling events, or triggering electrical switching operations within industrial environments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Without button plate
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL File No.: E29184
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947-5
VDE 0660
CE
UL 508
CSA Class No.: 3211-03
IEC/EN 60947
CSA
CSA File No.: 012528
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
NEMA 13
IP66
NEMA 12
NEMA 3R
IP69K
IP67/IP69K
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
