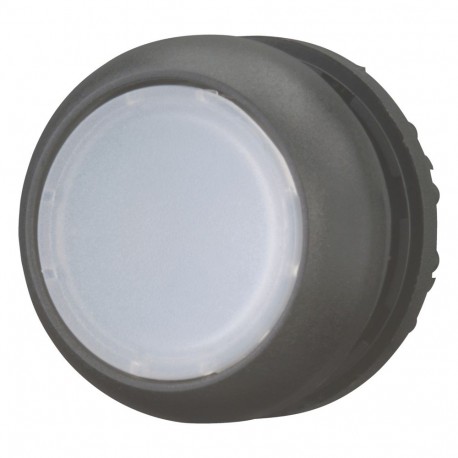

EATON - MOELLER M22S-DL-W M22S-DL-W 216924 Y7-216924 EATON ELECTRIC Illuminated pushbutton actuator, flush, white, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DL-W 216924 Y7-216924 EATON ELECTRIC Illuminated pushbutton actuator, flush, white, momentary

M22S-DL-W

216924

Y7-216924

EATON - MOELLER

10 Pcs.

Illuminated pushbutton actuator, flush, white, momentary M22S-DL-W Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, momentary, White, Blank, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, momentary, button plate: White, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DL-W illuminated pushbutton actuator serves as a flush-mounted control device designed for clear operational signalling on industrial equipment. Engineers integrate these components into control desks to allow machine operators to send momentary electrical signals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216924
Model Code
M22S-DL-W
EAN
4015082169244
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
IEC 60947-5
VDE
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL File No.: E29184
VDE 0660
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CSA
CSA File No.: 012528
IEC/EN 60947
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
