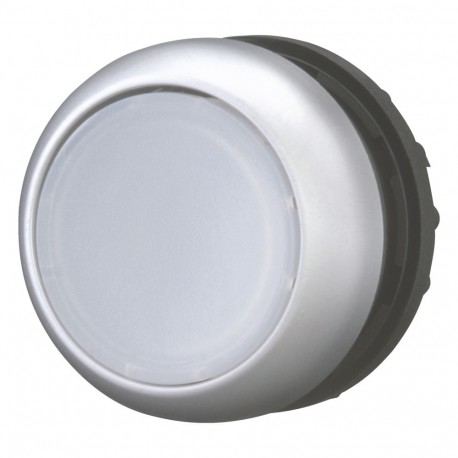

M22-DL-W 216922 Y7-216922 EATON ELECTRIC Illuminated pushbutton actuator, flush, white, momentary
M22-DL-W
216922
Y7-216922
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An illuminated pushbutton actuator, flush, white, momentary like the Eaton Moeller M22-DL-W provides both tactile switching and visual status indication in electrical control enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M22 illuminated pushbutton
- Catalog Number: 216922
- Model Code: M22-DL-W
- EAN: 4015082169220
- Product Length/Depth: 30 mm
- Product Height: 30 mm
- Product Width: 30 mm
- Product Weight: 0.01 kg
- Compliances: CE Marked
- Type: Illuminated pushbutton actuator
- Actuator color: White
- Actuator function: Momentary Spring-return
- 10.10 Temperature rise: Not applicable.
- 10.2.2 Corrosion resistance: Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
- 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 illuminated pushbutton |
| Catalog Number | 216922 |
| Model Code | M22-DL-W |
| EAN | 4015082169220 |
| Product Length/Depth | 30 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.01 kg |
| Compliances | CE Marked |
| Certifications | UL 508 CSA Std. C22.2 No. 94-91 IEC 60947-5 CSA Std. C22.2 No. 14-05 EN 60947-5 VDE VDE 0660 CE CSA CSA Class No.: 3211-03 CSA File No.: 012528 CSA-C22.2 No. 94-91 IEC/EN 60947 IEC/EN 60947-5 UL CSA-C22.2 No. 14-05 UL File No.: E29184 UL Category Control No.: NKCR DNV GL LR |
Product specifications
| Type | Illuminated pushbutton actuator |
| Actuator color | White |
| Actuator function | Momentary Spring-return |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Front ring |
| Operating frequency | 3600 Operations/h |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
| Connection to SmartWire-DT | With SWD-RMQ connections Yes |
| Actuating force | 5 N |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Number of command positions | 1 |
| Opening diameter | 22.5 mm |
| Opening height | 0 mm |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Bezel color | Titanium |
| Shock resistance | 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27 |
| Color | White |
| Bezel material | Plastic |
| Design | Flush Classical |
| Mounting position | As required |
| Degree of protection | IP66 IP69K NEMA 12 NEMA 13 NEMA 4X NEMA 3R IP67 |
| Degree of protection (front side) | IP67/IP69K NEMA 4X |
| Inscription | Blank |
| Front element type | Flat |
| Lens type | Round |
| Lifespan, mechanical | 5,000,000 Operations |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Width opening | 0 mm |
| Product category | RMQ-Titan |
| Size | Front dimensions: 22 x 22 mm |
| Suitable for | Illumination |
