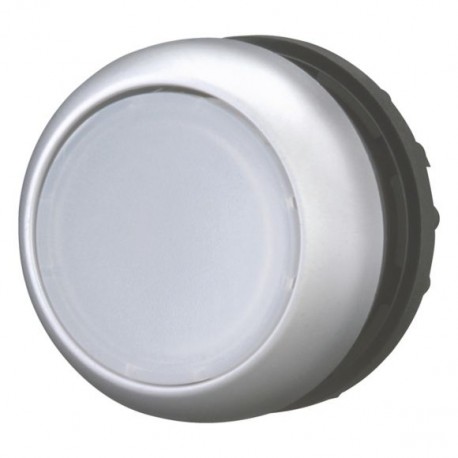

M22-DRL-W 216944 Y7-216944 EATON ELECTRIC Illuminated pushbutton actuator, flush, white, maintained
M22-DRL-W
216944
Y7-216944
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DRL-W is an illuminated pushbutton actuator designed to facilitate operator control and status indication within industrial automation setups. Maintained control devices of this nature are commonly used to lock operational modes until intentionally reset.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
IEC/EN 60947
CSA File No.: 012528
UL File No.: E29184
CSA Class No.: 3211-03
CSA
IEC/EN 60947-5
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 12
NEMA 13
IP67
NEMA 3R
NEMA 4X
IP66
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Maintained
