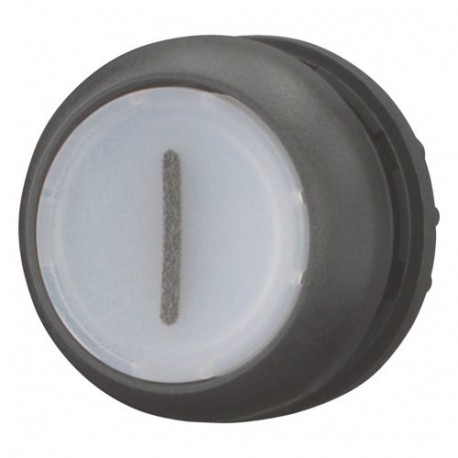

EATON - MOELLER M22S-DRL-W-X1 M22S-DRL-W-X1 216964 Y7-216964 EATON ELECTRIC Illuminated pushbutton actuator, flush, white I, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DRL-W-X1 216964 Y7-216964 EATON ELECTRIC Illuminated pushbutton actuator, flush, white I, maintained

M22S-DRL-W-X1

216964

Y7-216964

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, flush, white I, maintained M22S-DRL-W-X1 Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, maintained, White, inscribed 1, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, maintained, button plate: White, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DRL-W-X1 illuminated pushbutton actuator serves as a durable operator interface device on industrial machinery, designed to maintain persistent operational commands. These maintained switches are routinely mounted on control panels and operator stations for reliable machine start and stop functionality.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: White
  • Number of command positions: 1
  • Construction type lens: Round
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Type of button: Flat
  • Suitable for lighting: Yes
  • With protective cover: No
  • Labelled: Yes
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: Yes
  • Material front ring: Plastic
  • Colour front ring: Black
  • Degree of protection (IP), front side: IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216964
Model Code
M22S-DRL-W-X1
EAN
4015082169640
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.012 kg
Certifications
CSA Class No.: 3211-03
VDE 0660
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
IEC/EN 60947
CSA
CE
IEC/EN 60947-5
UL 508
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
UL File No.: E29184
DNV
GL
LR
