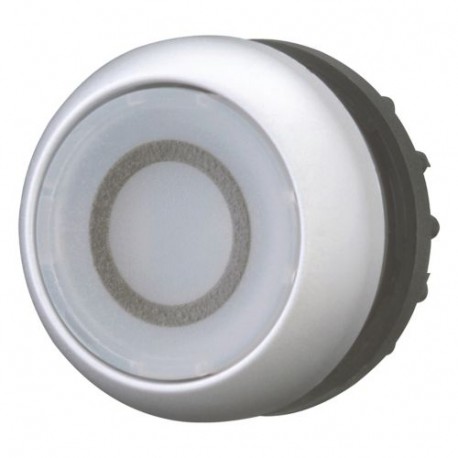

M22-DRL-W-X0 216961 Y7-216961 EATON ELECTRIC Illuminated pushbutton actuator, flush, white 0, maintained
M22-DRL-W-X0
216961
Y7-216961
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DRL-W-X0 is an illuminated pushbutton actuator built for maintained switching tasks in commercial and industrial settings. Maintained control devices maintain their activated state until physically reset by an operator.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
VDE 0660
UL
CSA
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-5
UL 508
UL File No.: E29184
DNV
GL
LR
