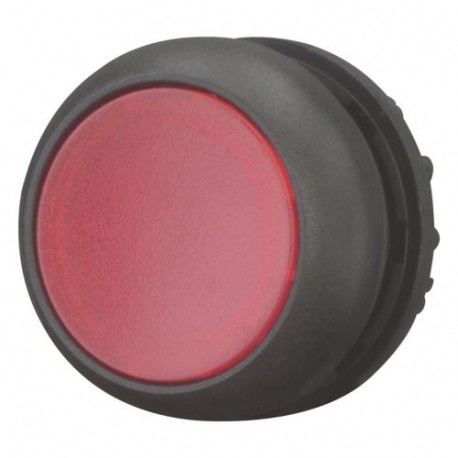

M22S-DRL-R 216947 Y7-216947 EATON ELECTRIC Illuminated pushbutton actuator, flush, red, maintained
M22S-DRL-R
216947
Y7-216947
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-visibility panel integration, the Eaton Moeller M22S-DRL-R is an illuminated flush pushbutton actuator with a latching, maintained operation mode. Control engineers select these devices to maintain critical operational modes and status indications on industrial machinery control desks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL Category Control No.: NKCR
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
VDE 0660
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA
UL 508
IEC/EN 60947
UL
DNV
GL
LR
