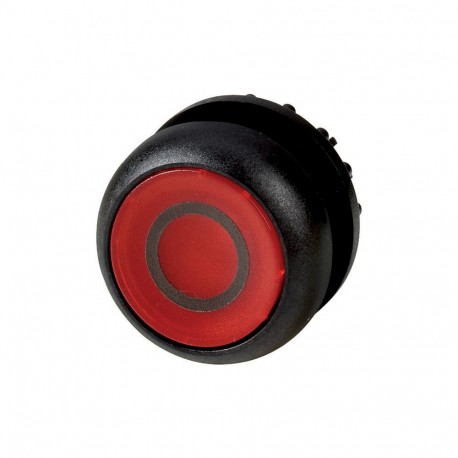

EATON - MOELLER M22S-DRL-R-X0 M22S-DRL-R-X0 216958 Y7-216958 EATON ELECTRIC Illuminated pushbutton actuator, flush, red 0, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DRL-R-X0 216958 Y7-216958 EATON ELECTRIC Illuminated pushbutton actuator, flush, red 0, maintained

M22S-DRL-R-X0

216958

Y7-216958

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, flush, red 0, maintained M22S-DRL-R-X0 Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, maintained, red, inscribed, Bezel: black Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DRL-R-X0 illuminated pushbutton actuator provides a dependable operator control point for industrial equipment, allowing personnel to execute maintained safety or stop commands. Such actuators are frequently deployed on control desks and machine interfaces to manage critical operational states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: Red
  • Number of command positions: 1
  • Construction type lens: Round
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Type of button: Flat
  • Suitable for lighting: Yes
  • With protective cover: No
  • Labelled: Yes
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: Yes
  • Material front ring: Plastic
  • Colour front ring: Black
  • Degree of protection (IP), front side: IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216958
Model Code
M22S-DRL-R-X0
EAN
4015082169589
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.012 kg
Certifications
CSA-C22.2 No. 94-91
CE
IEC/EN 60947-5
UL 508
CSA Class No.: 3211-03
IEC/EN 60947
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL
VDE 0660
UL File No.: E29184
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
