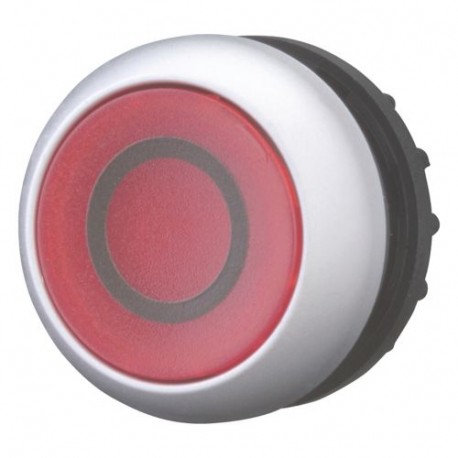

M22-DRL-R-X0 216957 Y7-216957 EATON ELECTRIC Illuminated pushbutton actuator, flush, red 0, maintained
M22-DRL-R-X0
216957
Y7-216957
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DRL-R-X0 illuminated pushbutton actuator is engineered for industrial control panels where operators require maintained stop command functionality with visual feedback. These devices mount securely to machine enclosures to govern critical circuit states reliably.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
UL File No.: E29184
CSA File No.: 012528
UL
VDE 0660
CSA
IEC/EN 60947
CE
UL Category Control No.: NKCR
DNV
GL
LR
