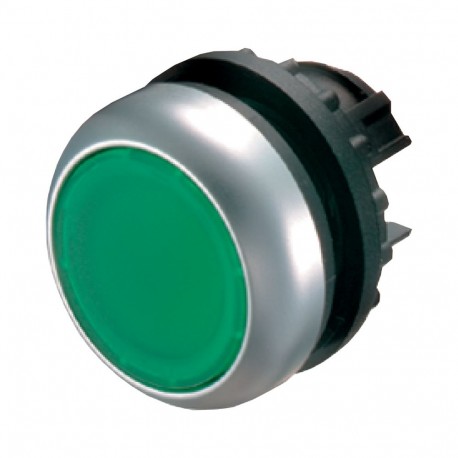

EATON - MOELLER M22-DRL-G M22-DRL-G 216948 Y7-216948 EATON ELECTRIC Illuminated pushbutton actuator, flush, green, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRL-G 216948 Y7-216948 EATON ELECTRIC Illuminated pushbutton actuator, flush, green, maintained

M22-DRL-G

216948

Y7-216948

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, flush, green, maintained M22-DRL-G Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, maintained, green, Blank, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, maintained, button plate: green, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller illuminated pushbutton actuator, flush, green, maintained provides a latching operator interface with integrated lighting capabilities for industrial control boards. These devices sustain their switching position until manually reset, offering dependable status control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216948
Model Code
M22-DRL-G
EAN
4015082169480
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
EN 60947-5
UL 508
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
CSA File No.: 012528
CSA
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
IEC/EN 60947
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CE
UL File No.: E29184
DNV
GL
LR
