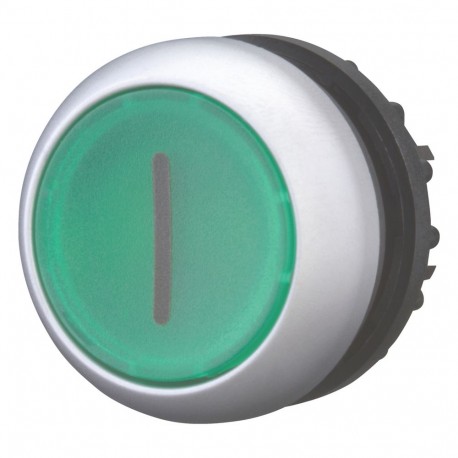

M22-DL-G-X1 216938 Y7-216938 EATON ELECTRIC Illuminated pushbutton actuator, flush, green I, momentary
M22-DL-G-X1
216938
Y7-216938
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Eaton Moeller, this illuminated pushbutton actuator serves as an essential signaling and switching device in electrical distribution networks and machine control panels. Operators use such components to initiate momentary commands while receiving immediate visual verification of system statuses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
IEC/EN 60947
VDE 0660
CE
CSA
CSA File No.: 012528
UL
UL File No.: E29184
DNV
GL
LR
