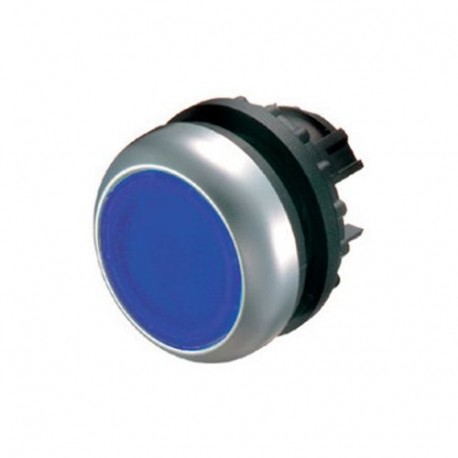

M22-DL-B 216931 Y7-216931 EATON ELECTRIC Illuminated pushbutton actuator, flush, blue, momentary
M22-DL-B
216931
Y7-216931
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-DL-B Eaton Moeller illuminated pushbutton actuator serves as a standard pilot device on machinery panels to transmit control commands and status signals. Such components provide dependable visual feedback and manual switching capability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series M22 Illuminated pushbutton actuator
- Catalog Number: 216931
- Model Code: M22-DL-B
- EAN: 4015082169312
- Product Length/Depth: 30 mm
- Product Height: 30 mm
- Product Width: 30 mm
- Product Weight: 0.01 kg
- Compliances: CE Marked
- Bezel color: Titanium
- Bezel material: Plastic
- Design: Flush Classical
- Fitted with:: Front ring
- Inscription: Blank
- Degree of protection: IP66 NEMA 4X NEMA 12 NEMA 13 IP67 NEMA 3R IP69K
- Degree of protection (front side): IP67/IP69K NEMA 4X
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 Illuminated pushbutton actuator |
| Catalog Number | 216931 |
| Model Code | M22-DL-B |
| EAN | 4015082169312 |
| Product Length/Depth | 30 mm |
| Product Height | 30 mm |
| Product Width | 30 mm |
| Product Weight | 0.01 kg |
| Compliances | CE Marked |
| Certifications | CSA Std. C22.2 No. 94-91 IEC 60947-5 CSA Std. C22.2 No. 14-05 UL 508 EN 60947-5 VDE UL Category Control No.: NKCR CSA Class No.: 3211-03 CSA-C22.2 No. 94-91 IEC/EN 60947 IEC/EN 60947-5 CSA-C22.2 No. 14-05 UL File No.: E29184 UL CE VDE 0660 CSA CSA File No.: 012528 DNV GL LR |
Features & Functions
| Bezel color | Titanium |
| Bezel material | Plastic |
| Design | Flush Classical |
| Fitted with: | Front ring |
| Inscription | Blank |
General information
| Degree of protection | IP66 NEMA 4X NEMA 12 NEMA 13 IP67 NEMA 3R IP69K |
| Degree of protection (front side) | IP67/IP69K NEMA 4X |
| Lifespan, mechanical | 5,000,000 Operations |
| Opening diameter | 22.5 mm |
| Operating frequency | 3600 Operations/h |
| Product category | RMQ-Titan |
| Product category | RMQ-Titan |
| Size | Front dimensions: 22 x 22 mm |
| Suitable for | Illumination |
| Type | Illuminated pushbutton actuator |
Ambient conditions, mechanical
| Mounting position | As required |
| Shock resistance | 30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Mechanical, According to IEC/EN 60068-2-27 |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 70 °C |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
Communication
| Connection to SmartWire-DT | With SWD-RMQ connections Yes |
Actuator
| Actuating force | 5 N |
| Actuator color | Blue |
| Actuator function | Momentary Spring-return |
Contacts
| Force for positive opening - min | 0 N |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
