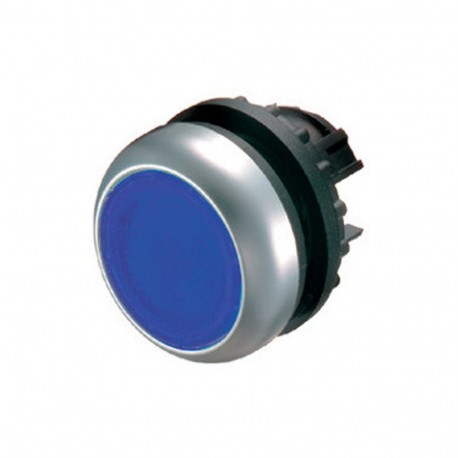

EATON - MOELLER M22-DRL-B M22-DRL-B 216952 Y7-216952 EATON ELECTRIC Illuminated pushbutton actuator, flush, blue, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRL-B 216952 Y7-216952 EATON ELECTRIC Illuminated pushbutton actuator, flush, blue, maintained

M22-DRL-B

216952

Y7-216952

EATON - MOELLER

1 Pcs.

Illuminated pushbutton actuator, flush, blue, maintained M22-DRL-B Eaton Moeller® series M22 Illuminated pushbutton actuator, RMQ-Titan, Flush, maintained, Blue, Blank, Bezel: titanium Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flush, maintained, button plate: Blue, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-DRL-B Illuminated pushbutton actuator serves as an operator control device in industrial automation systems, letting personnel initiate commands or monitor equipment states on control desks and panels. Maintained interface buttons hold their state until manually changed, making them suited for steady-state toggles and operational mode changes.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Blue
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Illuminated pushbutton actuator
Catalog Number
216952
Model Code
M22-DRL-B
EAN
4015082169527
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
IEC 60947
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
VDE
UL
UL File No.: E29184
CSA
CSA File No.: 012528
UL Category Control No.: NKCR
IEC/EN 60947-5
VDE 0660
CE
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
DNV
GL
LR
