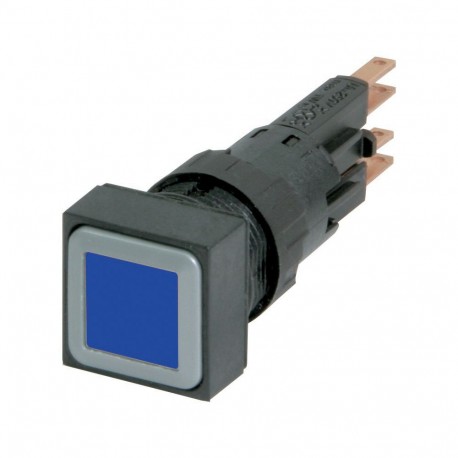

Q18LT-BL/WB 088338 Y7-88338 EATON ELECTRIC Illuminated pushbutton actuator, blue, momentary, +filament lamp ..
Q18LT-BL/WB
088338
Y7-88338
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Q18LT-BL/WB Eaton Moeller illuminated pushbutton actuator is an operator interface unit designed to manage control circuits while providing visual indicators on control boards. These space-saving components support standard automation tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): Yes
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA
CSA Class No.: 3211-03
CSA File No.: 46552
IEC/EN 60947
IEC/EN 60947-5
CE
UL
UL Category Control No.: NKCR
UL 508
UL File No.: E29184
Features & Functions
General
IP65
NEMA 1
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Momentary
